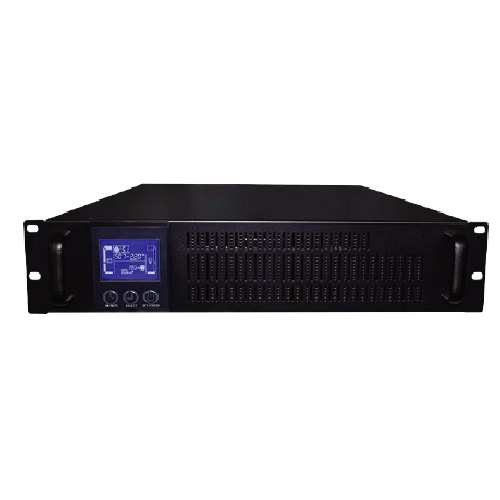

Power 1KVA~3KVA:
1:1 Phase PF 0.9 (PF 1.0 optional)
PRODUCT DETAILS:
- Rack/Tower Convertible design
- Online double conversion with full digital control
- Wide input voltage range: 110~300Vac
- Input power factor 0.99 with PFC
- Selectable output voltage: 208/220/230/240Vac
- Smart charger design for optimized battery performance
- Maximum charging current can be expanded to 12 A (Long run unit)
- Emergency power off function (EPO)
Download

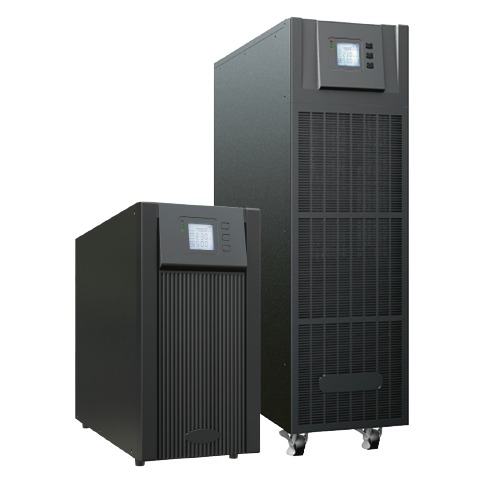

Power 6KVA~10KVA:
1:1 Phase PF 0.9 (PF 1.0 optional)
PRODUCT DETAILS:
- High power density
- Rack/tower convertible design
- N+X parallel redundancy, support maximum 4 units in parallel
- Online double conversion with full digital control
- Optimization battery group, the quantity of battery: +-8/+-/9/+-10pcs (settable)
- Wide input frequency range
- Generator compatible
- ECO mode operations for energy saving
- Self-testing when UPS startup
- Multiple communication interface: RS232/USB/EPO (Dry Contact/SNMP card optional)
Download

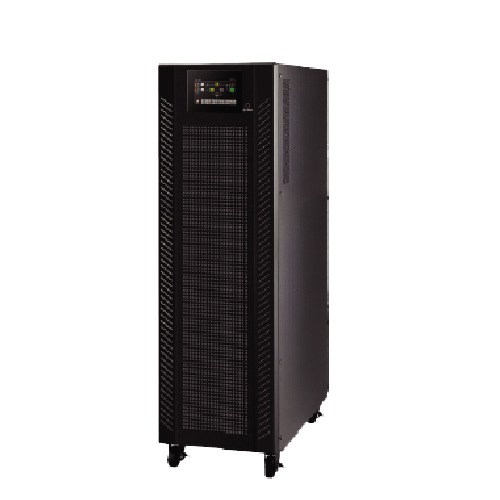

Power 6KVA~20KVA:
3:1 phase PF 0.9
PRODUCT DETAILS:
- Support parallel function (Optional)
- Online double conversion with DSP control
- Optimization battery group, the quantity of battery: 16/18/20pcs
- Wide input voltage range: 208~478Vac
- Wide input frequency range: 40~70Hz
- Maximum charging current up to 18A (Settable)
- Support 3/1 and 1/1 operation
- Generator compatible
- ECO mode operation for energy saving
Download
