UPS

Modular UPS:

...

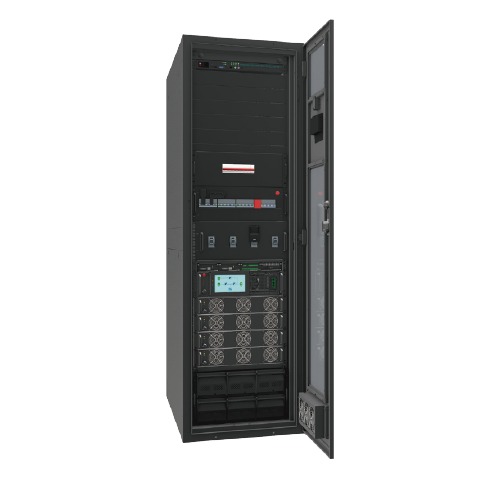

Subrack Modular Series:


  • Online Transformer less UPS series
  • Power range: 10~150kVA (3-Level PF: 1.0)
  • Mode: 3 phase input and 3 phase output
  • Module: 10/15/20/25/30/40/50kVA

All units adopt modular design, including power module, bypass module, monitoring module, can be easily integrated in MDC or customized cabinet. Power module, Bypass module, Monitoring module, ECU control module, all these modules are hot swappable. Wide input voltage range, line voltage range is 138-485V; UPS will derate to 40% when input voltage is below 305V. Support parallel expanded operation: maximum is 6 units. Support sharing batteries for the UPS in parallel. Batteries number of each group can be selected from 30 pieces to 50 pieces. Output power factor is 1.0; UPS can supply power to 100% unbalanced load. Support SNMP, RS232, RS485, BMS, Dry contact interface.

Download
...

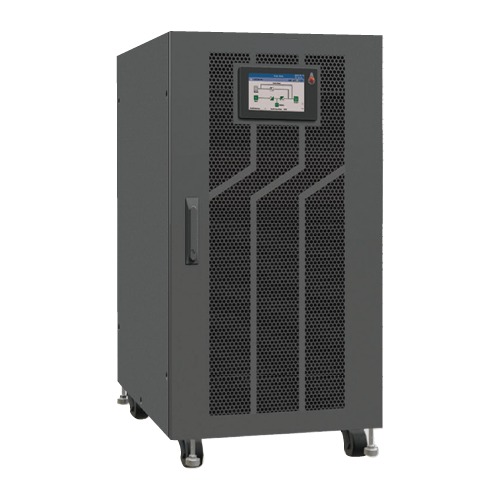

Modular Series:


  • Online Transformer less UPS series
  • Power range: 10~150kVA (3-Level PF: 1.0)
  • Mode: 3 phase input and 3 phase output
  • Module: 10/15/20/25/30kVA

All units adopt modular design, including power module, bypass module, monitoring module, can be easily integrated in MDC or customized cabinet. Power module, Bypass module, Monitoring module, ECU control module, all these modules are hot swappable. Wide input voltage range, line voltage range is 138-485V; UPS will derate to 40% when input voltage is below 305V. Support parallel expanded operation: maximum is 6 units. Support sharing batteries for the UPS in parallel. Batteries number of each group can be selected from 30 pieces to 50 pieces. Output power factor is 1.0; UPS can supply power to 100% unbalanced load. Support SNMP, RS232, RS485, BMS, Dry contact interface.

Download
